The junction gate field-effect transistor, or JFET, is the simplest type of field-effect transistor. In a junction field-effect transistor, or JFET, the controlled current passes from source to drain, or from drain to source as the case may be. The controlling voltage is applied between the gate and source. Note how the current does not have to cross through a PN junction on its way between source and drain: the path (called a channel) is an uninterrupted block of semiconductor material.

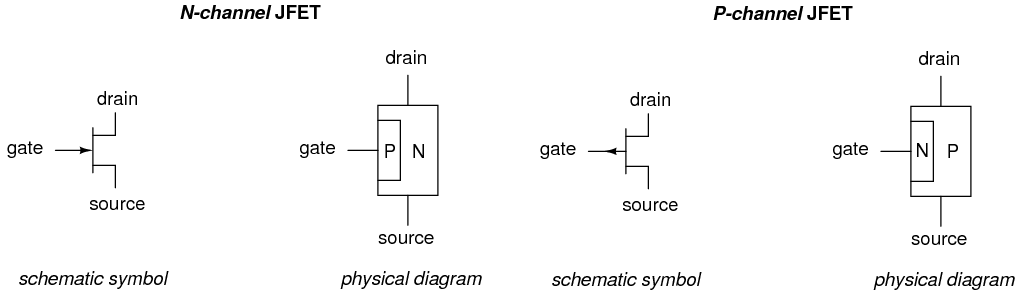

Its types are as follows:JFET types

Practical on JFET Transistor Input/Output Characteristics

study Transistor Input/Output Characteristics of JFET-1
study Transistor Input/Output Characteristics of JFET-2
study Transistor Input/Output Characteristics of JFET-3
study Transistor Input/Output Characteristics of JFET-4
study Transistor Input/Output Characteristics of JFET-5

Watch this Video to know about JFET Transistor characteristics
