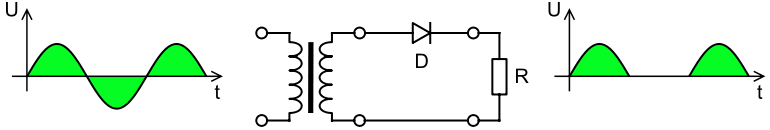

In half-wave rectification of a single-phase supply, either the positive or negative half of the AC wave is passed, while the other half is blocked. Because only one half of the input waveform reaches the output, mean voltage is lower. Half-wave rectification requires a single diode in a single-phase supply, or three in a three-phase supply. Rectifiers yield a unidirectional but pulsating direct current; half-wave rectifiers produce far more ripple than full-wave rectifiers, and much more filtering is needed to eliminate harmonics of the AC frequency from the output.


Practical to study half-wave rectifier



Watch this Video to know more about op-amp as inverting and non-inverting amplifier

Also Check Out – Consistency of Concrete by Slump Cone

Thanks for visiting us…

To study half wave rectifier of Single Phase Supply – AIC Practical
